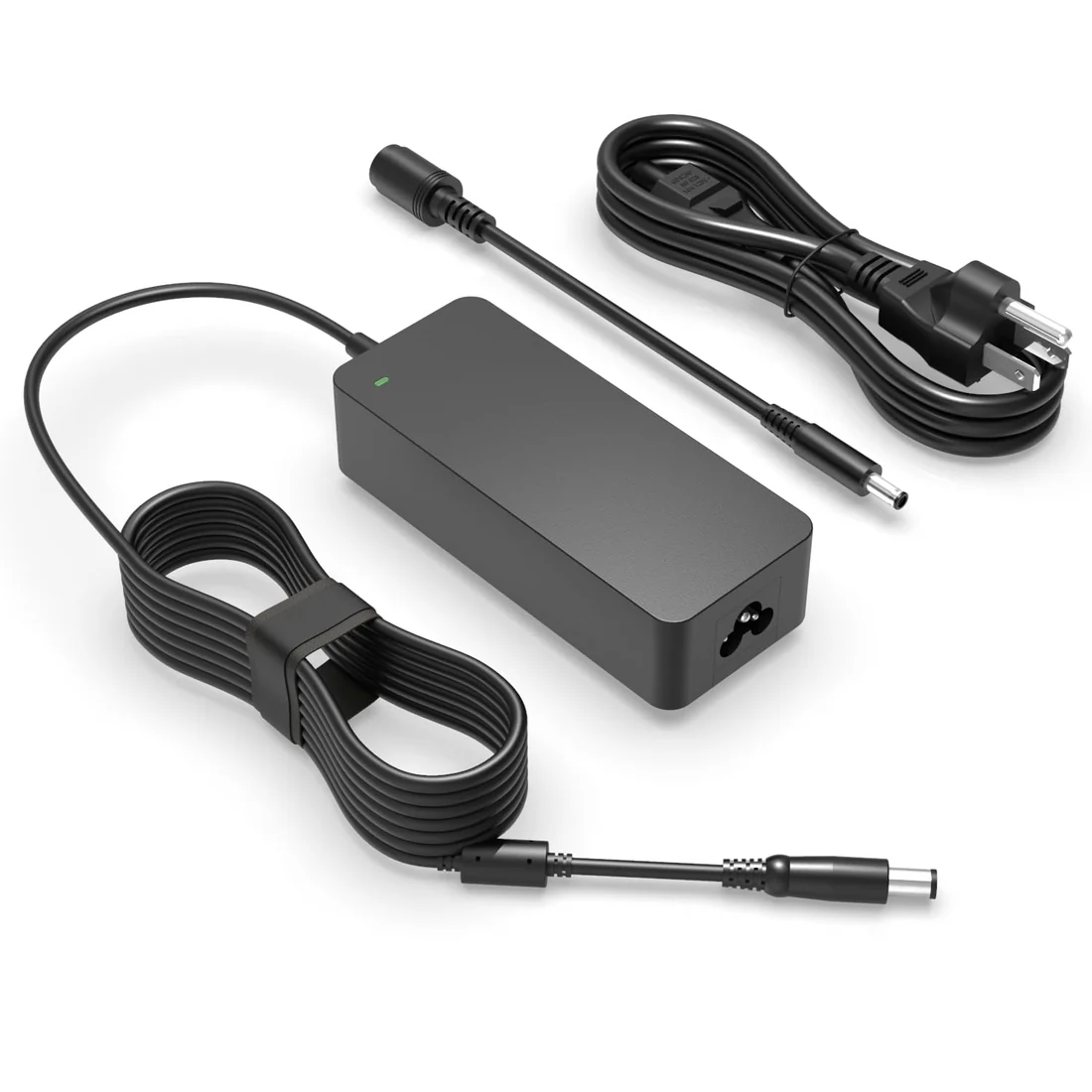

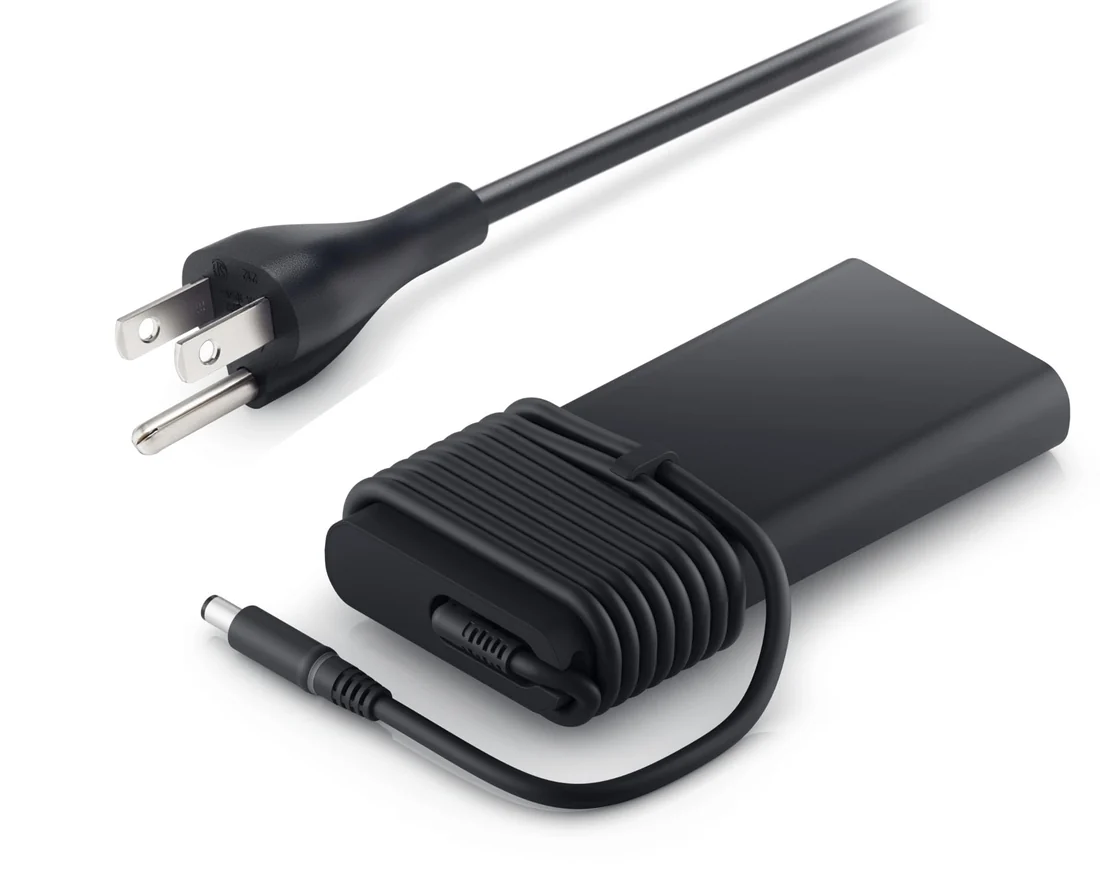

Dell Original 90W Slim Tip Charger for Latitude E5470 / E5570 (4.5mm) — quick answer
The Dell Original 90W Slim Tip Charger for Latitude E5470 / E5570 (4.5mm) is a genuine, tested Dell 90W power adapter available at N.N Laptops, Hafeez Center, Lahore for Rs. 6,000. It outputs 19.5V at 4.62A through the 4.5mm × 3.0mm slim tip connector and is the OEM-spec charger for Latitude E5470, Latitude E5570, Latitude E7470. Backed by our 15-day check warranty with free Lahore delivery and Cash on Delivery across Pakistan.
Full specifications
| Brand | Dell |
|---|---|
| Wattage | 90W |
| Output Voltage | 19.5V |
| Output Current | 4.62A |
| Connector Type | 4.5mm × 3.0mm slim tip |
| AC Input | 100-240V, 50-60Hz (Pakistan compatible) |
| Cable Length | ~1.8m (brick to laptop) + ~1.5m wall cord |
| Compatible Models | Latitude E5470, Latitude E5570, Latitude E7470, Latitude E7270 |
| Condition | Genuine — Tested |
| Warranty | 15-day check warranty |
Compatibility — which laptops does this fit?
This 90W Dell charger is the OEM-spec power adapter for:
Wattage and connector are the two factors that decide compatibility. The 4.5mm × 3.0mm slim tip connector physically matches only the listed models — do not force it into a different-size port. If you have a related but different model, WhatsApp us with the exact spec sticker text and we'll confirm before you buy.
What's in the box & build quality
Every charger we ship includes the brick-to-laptop cable (fixed), the Pakistan 3-pin C5 'mickey-mouse' wall cord, and a soft pouch for travel. Build quality on this Dell unit is exactly what came with the laptop new — same chassis injection, same internal magnetic shielding, same cable strain-relief.
What you get
- 1× Dell 90W adapter brick
- 1× Pakistan/UK 3-pin AC cord
- 15-day check warranty card
Real-world use — what to expect
Plug it in and the laptop charges at full speed: 0-50% in about 35-45 minutes on most modern Dell machines, full charge in 1.5-2 hours. The brick warms up to 40-45°C under load — that's normal for a switching power supply, not a defect. The white LED on the tip turns on the moment AC is connected, so you have instant visual confirmation the brick is alive even if the laptop battery is fully drained.
How to verify you've got the right charger
Three checks before you buy:
1. Wattage
Look at the sticker on the bottom of your current charger — if it says 90W, you're matched. A higher-wattage Dell charger is also safe (laptop only draws what it needs); a lower-wattage one will run the laptop but won't charge under heavy load.
2. Connector size
Use a calliper or compare to the sample photo. 4.5mm × 3.0mm slim tip is the only fit — don't force a wrong-size pin.
3. Voltage
Must be 19.5V. Never use a Dell charger from a desktop or printer — those are 12V DC and will damage the laptop board.
Where to buy in Lahore — and shipping nationwide
We're at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore. Walk-in welcome — bring your laptop and we'll test the charger on it before you pay. Lahore deliveries are free; nationwide via TCS / Leopards (Cash on Delivery) reach Karachi, Islamabad, Faisalabad, Multan, Peshawar in 1-3 working days. WhatsApp 0314 4000131 to confirm stock.
Browse all our laptop chargers and laptop parts, or our complete laptop battery range.
Warranty & after-sales support
Every charger carries our standard 15-day check warranty — if the brick fails on first install, develops an output fault, or shows AC ripple during the test period, bring it back to the shop with the invoice for a full replacement or refund. No questions asked within the warranty window.
Frequently asked questions
Is this an original or compatible charger?
Both options come through our stock. This unit is a genuine Dell pull-out from working laptops, fully tested for output voltage stability, ripple, and protection circuits. We also stock high-grade compatible versions if budget is tight — just tell us on WhatsApp 0314 4000131 which you prefer.
What about the new USB-C version — should I switch?
If your laptop has a Thunderbolt or USB-C charging port (most Dell models from 2019 onwards do), USB-C PD is the future-proof choice — you can charge from any compatible 65W+ brick, phone bank, or hub. For older slim-tip / barrel models, stick with the original-style charger listed here.
Does the charger include the wall cable?
Yes. Every charger ships with the Pakistan 3-pin C5 (mickey-mouse) AC cable to the wall. The brick-to-laptop side is a fixed cable for slim-tip and barrel models, and a detachable USB-C cable on USB-C models.
Can I use a higher-wattage charger instead?
Yes, higher wattage is safe as long as the voltage matches. A 115W or 135W Dell brick with the same 4.5mm × 3.0mm slim tip works fine and will not damage the laptop. The laptop only draws what it needs — extra headroom helps for fast-charge mode and heavy GPU loads.
