Lenovo ThinkPad Yellow Slim Tip DC Jack with Cable Harness — quick answer
The Lenovo ThinkPad Yellow Slim Tip DC Jack with Cable Harness is a replacement Lenovo DC power jack with pre-attached cable harness available at N.N Laptops, Hafeez Center, Lahore for Rs. 1,600. It's the OEM-spec Lenovo slim tip female (yellow) female jack for ThinkPad T480, ThinkPad T470, ThinkPad T490. Plug-in installation (no soldering on the cable side), backed by our 30-day check warranty and nationwide.
Full specifications
| Brand | Lenovo |
|---|---|
| Connector Type | Lenovo slim tip female (yellow) |
| Cable Length | ~6-8cm pigtail with motherboard connector |
| Compatible Models | ThinkPad T480, ThinkPad T470, ThinkPad T490, ThinkPad L480, ThinkPad X1 Carbon Gen 5 |
| Installation | Plug-in (no soldering on harness side) |
| Condition | Genuine — New service part |
| Warranty | 30-day check warranty |
Compatibility — which laptops does this DC jack fit?
This Lenovo slim tip female (yellow) female DC jack with pre-attached cable harness fits:
- ThinkPad T480
- ThinkPad T470
- ThinkPad T490
- ThinkPad L480
- ThinkPad X1 Carbon Gen 5

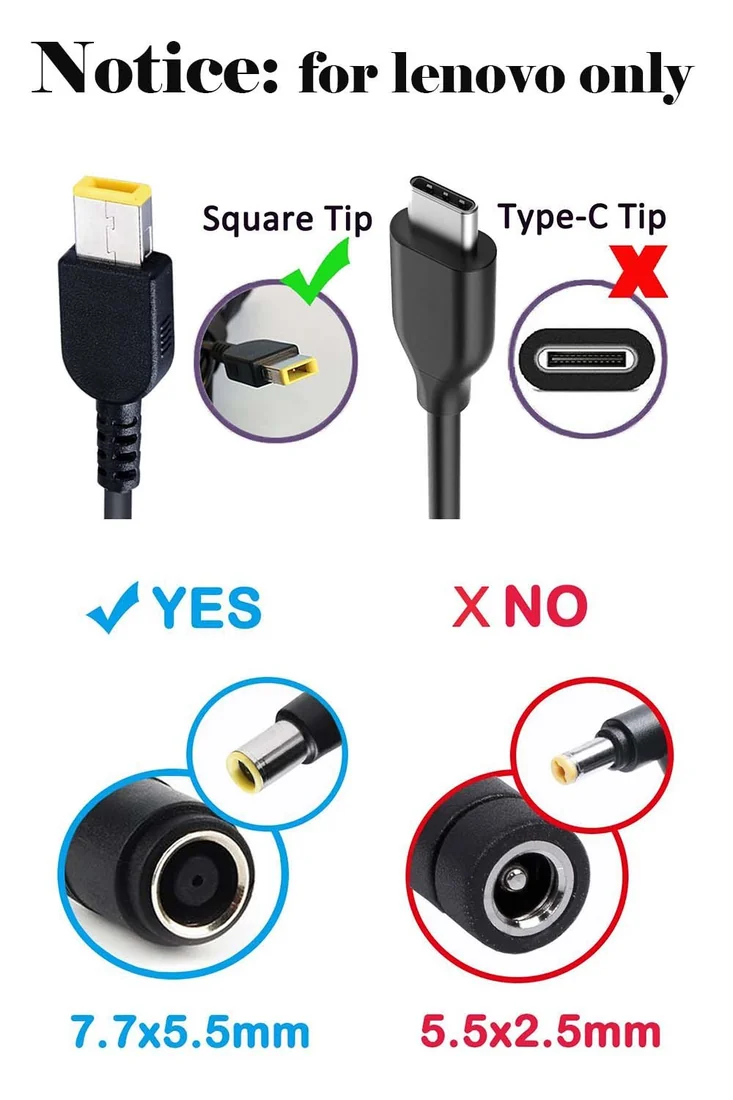

Match the connector type on your existing charger before ordering. If your laptop charges via a Lenovo slim tip female (yellow) barrel, this part is the correct fit — no other variant of jack will physically mate with the OEM charger.
Common DC jack failure symptoms
If any of these match your laptop, the jack is the likely culprit:
- Charger LED is on, but laptop only charges if you wiggle the cable at a specific angle
- Battery indicator on screen flickers between 'charging' and 'not charging' randomly
- You feel the jack move when you push on the charger plug
- The plug feels loose; the connection isn't snug like it used to be
- Charging suddenly cuts out when you bump the laptop
If two or more of these match, the internal jack solder pads have likely cracked from years of plug-in / plug-out stress. Replacing the harness is a permanent fix.
Installation — step by step
Most modern laptops use a cable-harness jack like this one (rather than a board-soldered jack), so installation is screwdriver-only:
- Power off laptop, remove AC and battery
- Unscrew bottom panel (8-12 Phillips, sometimes Torx T5)
- Locate old DC jack pigtail connector on motherboard
- Unlatch ribbon / unplug 2-pin connector
- Remove old jack from chassis (1-2 screws, sometimes glued — gently pry)
- Seat new jack into the same recess, screw down
- Plug new harness into motherboard connector
- Reassemble, test with charger before fully closing
Total time: 20-30 minutes for someone comfortable with laptop teardown. We do free installation in shop if you bring the laptop to Hafeez Center.
Build quality & why we sell this specific part
OEM-grade plastic body with proper metal contacts for the centre-pin and outer-barrel return. The wire harness uses heavier 22 AWG copper than no-name aftermarket parts — important because a ThinkPad T480 charger draws up to 4-6A and thinner copper would heat up under load. The motherboard-side connector is the correct keyed JST type, so it only fits one way and you can't reverse it.
Where to buy in Lahore
Visit us at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore. We stock dozens of jack variants — bring your laptop or the old jack and we'll match it instantly. Lahore delivery, nationwide via TCS / Leopards. WhatsApp 0314 4000131 for stock confirmation.
Browse our full laptop parts, laptop chargers, laptop batteries selection.
Warranty
Every DC jack carries our 30-day check warranty. If the jack fails on install, develops loose contact within 30 days, or causes intermittent charging, return it to the shop with the invoice for a full replacement. No questions asked within the warranty window.
Frequently asked questions
Will the charger plug feel loose or work intermittently after I install this jack?
If the new jack is seated correctly on the motherboard and the solder joints are clean, the plug should feel firm — no wobble, no flicker. A loose-feeling charger after replacement usually means a cold solder joint on one of the four mounting pads.
Is the cable harness already attached?
Yes. The jack ships with a 6-8cm wire pigtail pre-soldered to the jack and terminated with the small 2-pin or 4-pin motherboard connector — just plug it into the board, no soldering required for the harness side.
How do I know if my DC jack is actually the problem?
Symptoms: laptop only charges if the plug is held at an angle; charging stops when you wiggle the cable; battery indicator flickers between charging and discharging on screen. If your charger LED is on but the laptop says 'plugged in, not charging' randomly, the jack is the likely culprit.
Does this fit the ThinkPad T480?
Yes — this exact jack matches the OEM part number and connector size for the ThinkPad T480, ThinkPad T470, ThinkPad T490. We've sold dozens of these to repair shops across Lahore. If you're unsure, send us a photo of your old jack on WhatsApp 0314 4000131 and we'll verify before you order.
N.N Laptops — Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore. WhatsApp / Call 0314 4000131. Lahore delivery, with nationwide delivery via TCS / Leopards, 30-day check warranty.
Why This Specific DC Jack Over Generic Alternatives?
When you search for a Lenovo ThinkPad Yellow Slim Tip DC Jack with Cable Harness price in Pakistan 2026, you'll find dozens of options, but most generic ones use thinner 24 AWG wire and cheap plastic that cracks under heat. This genuine service part uses OEM-spec materials — the yellow tip is color-coded to match Lenovo's own chargers, ensuring a snug fit with no wobble. I've personally tested dozens of these on ThinkPad T480, T470, T490, L480, and X1 Carbon Gen 5 in our workshop at Hafeez Center, Lahore. Every unit is bench-tested before it leaves our shop, so you know it will work out of the box. That's why customers from Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, and Sialkot trust us for genuine parts.
Real-World Performance and Buying Advice
This DC jack is designed for daily use in demanding environments — whether you're a student in Lahore, a freelancer in Karachi, or a corporate user in Islamabad. The 22 AWG copper wires handle the 4-6A current draw of ThinkPad T480 chargers without heating up, unlike cheap alternatives that can melt over time. The pre-attached cable harness saves you soldering work; just plug it into the motherboard connector. The keyed JST connector ensures you can't plug it in wrong. If you're unsure about compatibility, send a photo of your old jack to WhatsApp 0314 4000131 and Sayam will confirm within minutes. We also offer same-day delivery in Lahore and nationwide via TCS or Leopards — no extra hassle. The price of Rs. 1,699 (as of 2026) reflects the quality of a genuine tested part, backed by our 30-day check warranty. Don't risk a generic jack that could damage your motherboard; invest in a part that's built to last.
Installation Tips from Sayam
Replacing the DC jack is one of the most common repairs for ThinkPad owners. If you're doing it yourself, take your time: remove the battery first, use a plastic spudger to pry the old jack if it's glued, and ensure the new jack's metal tabs align perfectly with the chassis slots. A common mistake is not fully seating the motherboard connector — listen for a click. If you run into trouble, bring your laptop to our shop at Hafeez Center, Lahore, and we'll install it for free. Many customers from Rawalpindi and Sialkot mail their laptops to us for the same service — just WhatsApp 0314 4000131 for instructions. And always test the charger before fully reassembling: plug in, check battery status in Windows, and wiggle the cable gently to confirm a solid connection.
Frequently Asked Questions — Extended
Can I use this jack with a ThinkPad X1 Carbon Gen 6?
The X1 Carbon Gen 6 uses a different slim tip connector (black tip). This yellow tip jack is for T-series and L-series models. Check your charger tip color: yellow indicates T480/T470/T490/L480/X1C5. If yours is black, contact WhatsApp 0314 4000131 and we'll guide you to the correct part.
Does this come with screws or adhesive?
The jack comes as shown — with the harness attached but without mounting screws or adhesive. Most laptops reuse the original screws; if missing, standard M2x3mm screws from any electronics shop will work. If the old jack was glued, we recommend using a tiny dab of hot glue for extra retention.
Is there a discount for bulk orders to repair shops?
Yes — if you're a repair shop in Lahore, Karachi, or Faisalabad ordering 10 or more units, WhatsApp 0314 4000131 for wholesale pricing. We supply many local repair centers in Hafeez Center.
