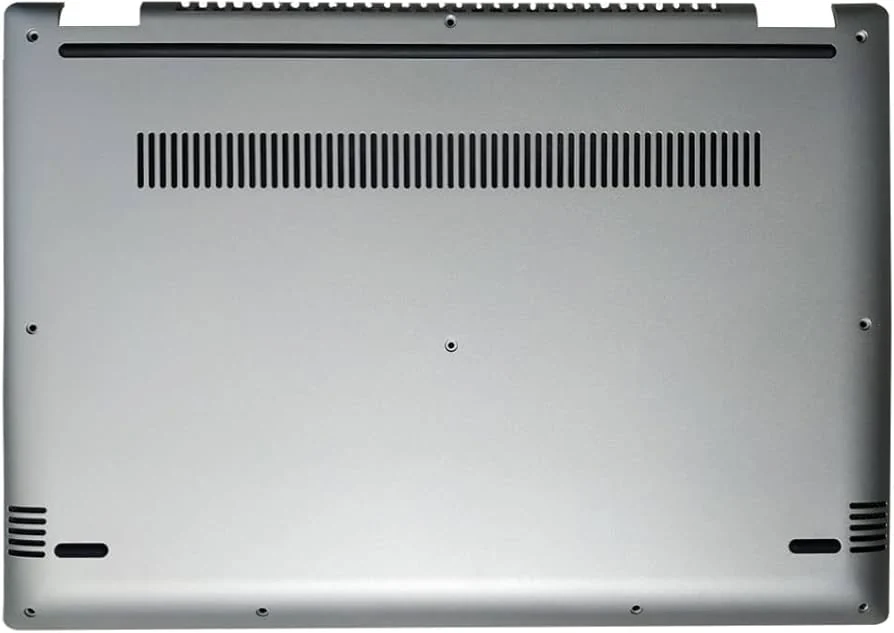

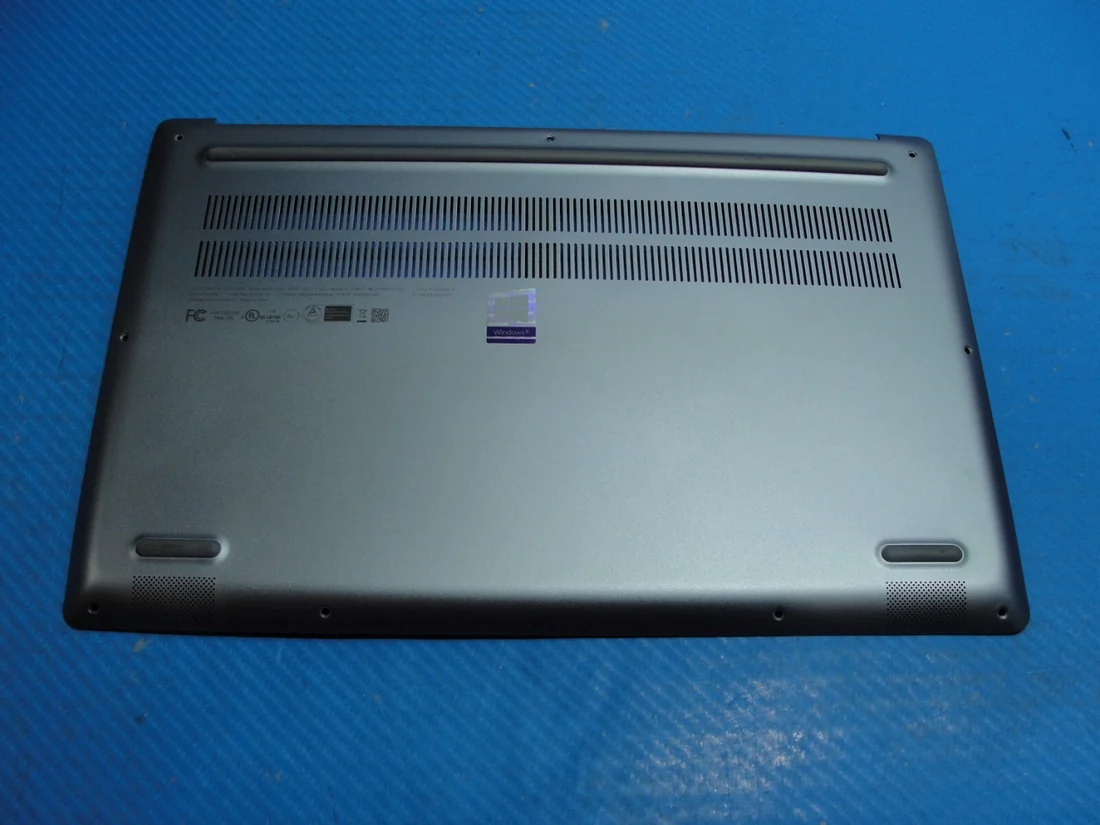

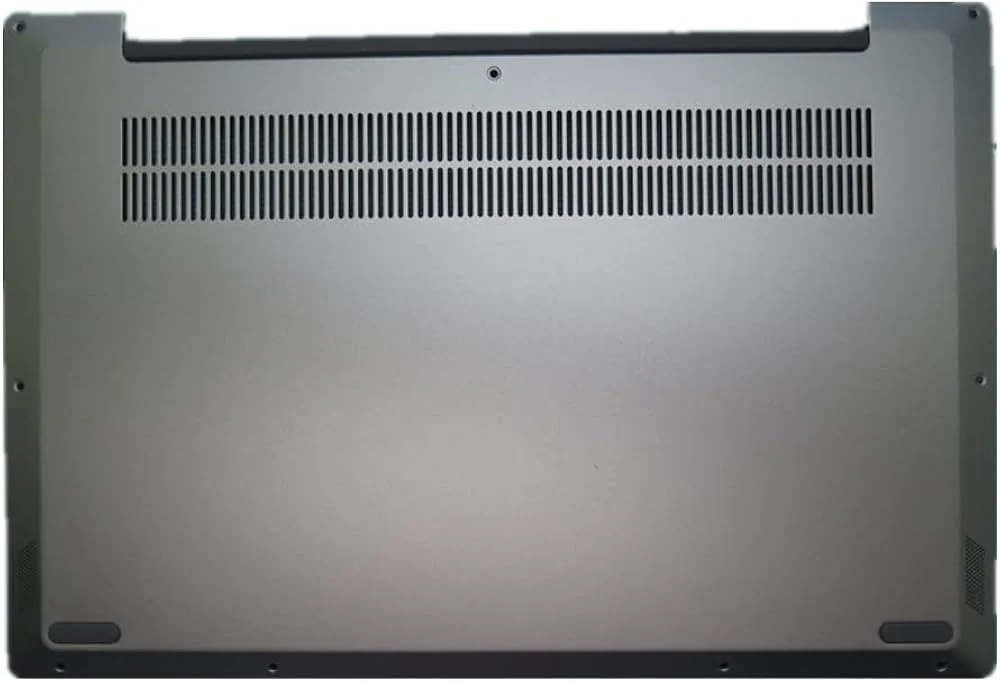

Lenovo IdeaPad S540 14 Bottom Case (D Panel) replacement
The Lenovo IdeaPad S540 14 bottom case (d panel) is the bottom enclosure with vents, screws and rubber feet in abyss blue finish, a direct OEM-fit replacement for IdeaPad S540 14 and S540 15 laptops from around 2019. This is the bottom shell that covers internal components — supplied with all original screw holes, hinge mount points, and antenna routing where applicable. Tested, scratch-graded, and in stock at N.N Laptops, Hafeez Center, Lahore.
What this panel is and what it does
This is the bottom enclosure with vents, screws and rubber feet in abyss blue finish for the Lenovo IdeaPad S540 14. As the laptop's the bottom shell that covers internal components, it carries cosmetic wear over years of use — scratches, dings, faded paint, cracked corners. A fresh panel restores the laptop's look and structural integrity without needing a full chassis replacement. Every panel we list has been pulled from a donor machine, cleaned, and inspected under bright light for cracks, dents, and stress fractures. We bench-test every panel by fitting it onto a compatible motherboard tray to confirm screw alignment and hinge clearance — so you don't waste time on a part that doesn't line up. If you're in Lahore, Karachi, Islamabad, Rawalpindi, or Faisalabad, you can get this panel delivered quickly. For same-day delivery in Lahore, we send it free via our courier; nationwide we ship through TCS or Leopards. At just Rs. 6,899, this is the most affordable way to renew your laptop's base without buying a whole new chassis.
Common reasons to replace the D panel
Many IdeaPad S540 14 owners swap the bottom case because of cracked screw posts, broken hinge mounts, or worn rubber feet that make the laptop wobble. Others upgrade from a scratched or faded panel to restore resale value. Whatever the reason, this OEM-fit replacement matches the original in thickness, vent placement, and screw pattern exactly.
Detailed specifications
| Brand | Lenovo |
|---|---|
| Compatible Models | IdeaPad S540 14, IdeaPad S540 15 |
| Panel Type | Bottom Case (D Panel) |
| Finish / Colour | abyss blue |
| Production Year | 2019 |
| Condition | Used — Grade A/B (no cracks, surface marks possible) |
| Includes | Bare panel only — no internal parts unless noted |
| Warranty | 30-day check warranty |
| Stock Location | Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore |
Material and build quality
Moulded from the same ABS plastic as the original, this panel feels identical to the factory part. All screw holes are threaded and aligned; the rubber feet are pre-attached (though if you need extras, ask Sayam on WhatsApp 0314 4000131). The finish is the original abyss blue — a dark metallic shade that matches the palm rest and top cover.
Confirmed compatibility
The following Lenovo laptop models share this exact panel — same screw layout, same hinge geometry, same antenna routing:
| IdeaPad S540 14 | Direct fit — same chassis revision |
|---|---|
| IdeaPad S540 15 | Cross-compatible (verify chassis revision) |
If your model isn't listed, send a photo of the old panel to Sayam on WhatsApp 0314 4000131 — we'll confirm fitment within minutes. This part is also compatible with some Yoga models that share the same base, but you must check first.
Installation guide
What's involved
The D panel is the easiest replacement — typically 8-12 underside screws plus a few hidden under rubber feet. A working swap takes 10-15 minutes.
Recommended tools
- Phillips PH00 and PH0 screwdrivers.
- Plastic pry tool / spudger.
- Anti-static mat (recommended).
- Tray to keep screws sorted by section.
Where to buy and warranty
Stock is available right now at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore, or order remotely via WhatsApp 0314 4000131. Every panel ships with our 30-day check warranty — if the part has a hidden crack or doesn't fit, bring it back for replacement or refund. Lahore delivery is same-day; nationwide via TCS or Leopards. While here, you can also browse A/B/C/D panel replacements, check compatible keyboards, browse touchpads, hinges, and flex cables.
Who needs this part?
- If your current bottom case has a crack, dent, or missing screw mount.
- If the rubber feet have worn down and the laptop slides.
- If you want to refurbish a used IdeaPad S540 14 for sale.
- If you're building a laptop from donor parts and need the base shell.
Customers from Multan, Peshawar, Sialkot, and beyond have ordered this panel — it ships safely in foam packaging via TCS or Leopards. For a free fitment check, just WhatsApp Sayam at 0314 4000131 with a photo of your laptop's bottom.
Why buy this panel from N.N Laptops
Used Lenovo IdeaPad S540 14 panels are increasingly hard to find as the laptop generation ages out of warranty. We maintain dedicated donor stock specifically for parts harvesting — which means our panels come from laptops with known service history, not random scrap. Every listing is photographed under the same lighting so what you see is exactly what you receive. And because we physically handle every part at our nnlaptops.com store in Lahore, we can guarantee the condition matches the grade.
Frequently Asked Questions
What grade is this Lenovo S540 14 bottom case (D panel)?
We grade panels A (no visible marks), B (light surface scratches only — no cracks or dents), or C (heavier wear, but structurally perfect). The default listing is Grade A or B. If you need exactly Grade A, WhatsApp 0314 4000131 before ordering and we'll set one aside.
Does this come with the LCD / keyboard / hinges?
This listing is the bottom case (D panel) only. No LCD glass, no keyboard, no internal boards. If you need a complete assembly (with screen and hinges) instead of just the panel, message us — we may have a complete top assembly in stock at a different price.
Will it fit if my service tag is different?
Lenovo reuses the same bottom case (D panel) mould across multiple sub-models. For IdeaPad S540 14 this part is identical across all i3/i5/i7 and touch/non-touch variants of the same year. Always send us a photo of your existing panel via WhatsApp 0314 4000131 for a free fitment check.
How is the panel packed for shipping?
Each panel is wrapped in foam, double-boxed, and labelled fragile. We ship via TCS Plus or Leopards Premier across Pakistan. Damage in transit is replaced free — we cover return courier.
Can you install it for me?
Yes — bring the laptop to Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore and we'll fit the panel in-shop. Most installations finish the same day. Labour is charged separately but discounted when you buy the part from us.
