Dell XPS 15 9570 Bottom Case (D Panel) replacement

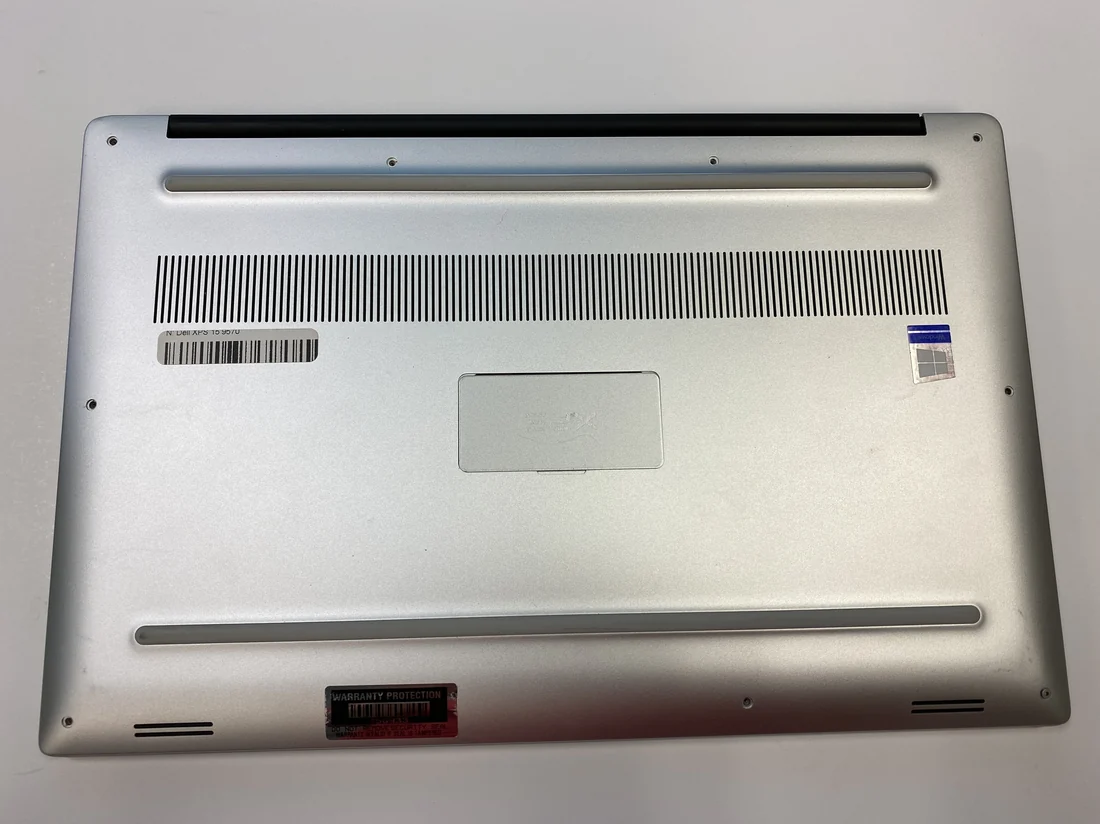

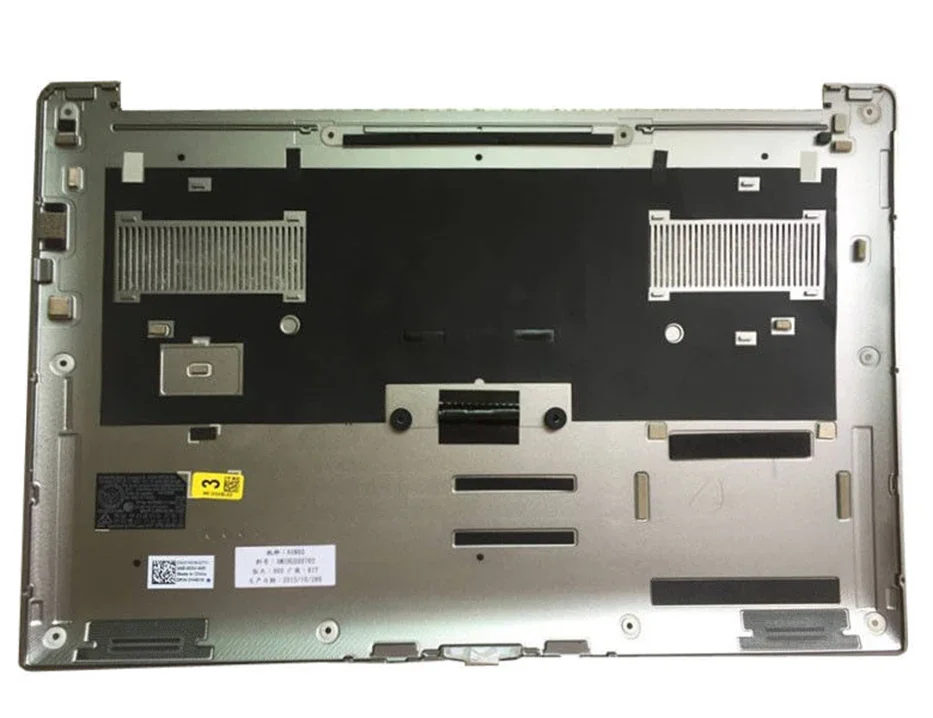

The Dell XPS 15 9570 bottom case (d panel) is the bottom enclosure with vents, screws and rubber feet in silver aluminium finish, a direct OEM-fit replacement for XPS 15 9570 and 9560 laptops from around 2018. This is the bottom shell that covers internal components — supplied with all original screw holes, hinge mount points, and antenna routing where applicable. Tested, scratch-graded, and in stock at N.N Laptops, Hafeez Center, Lahore.
Over years of daily use, the bottom case takes a beating—scratches from desks, dents from drops, rubber feet that wear out, and corners that crack. Replacing just the D panel restores your laptop's structural integrity and appearance for a fraction of the cost of a full chassis swap. At Rs. 6,399, this is the most affordable way to refresh your Dell XPS 15 9570 in 2026. Whether you're in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, or Sialkot, we ship nationwide via TCS or Leopards with same-day delivery within Lahore.
What this panel is and what it does
This is the bottom enclosure with vents, screws and rubber feet in silver aluminium finish for the Dell XPS 15 9570. As the laptop's the bottom shell that covers internal components, it carries cosmetic wear over years of use — scratches, dings, faded paint, cracked corners. A fresh panel restores the laptop's look and structural integrity without needing a full chassis replacement. Every panel we list has been bench-tested, pulled from a donor machine, cleaned, and inspected under bright light for cracks, dents, and stress fractures. We grade each one: A (like-new), B (light surface scratches), or C (heavier wear but structurally sound). Message Sayam on WhatsApp 0314 4000131 to request photos of the exact unit.
Who needs this bottom case replacement
If your Dell XPS 15 9570 has a broken corner, missing rubber feet, or a warped panel that won't sit flat, this part is the fix. It's also ideal for resellers or repair shops rebuilding laptops for sale—slap on a clean D panel and the machine looks almost new. Because this is a direct OEM fit, you won't have to dremel or mod anything. Just swap and go. And if you're unsure about compatibility, send a photo of your current panel to WhatsApp 0314 4000131—Sayam will confirm fitment free.
Detailed specifications
| Brand | Dell |
|---|---|
| Compatible Models | XPS 15 9570, XPS 9560 |
| Panel Type | Bottom Case (D Panel) |
| Finish / Colour | silver aluminium |
| Production Year | 2018 |
| Condition | Used — Grade A/B (no cracks, surface marks possible) |
| Material | Aluminium alloy |
| Includes | Bare panel only — no internal parts unless noted |
| Warranty | 30-day check warranty |
| Stock Location | Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore |
Confirmed compatibility
The following Dell laptop models share this exact panel — same screw layout, same hinge geometry, same antenna routing:
| XPS 15 9570 | Direct fit — same chassis revision |
|---|---|
| XPS 9560 | Cross-compatible (verify chassis revision) |
Installation guide
What's involved — The D panel is the easiest replacement — typically 8-12 underside screws plus a few hidden under rubber feet. A working swap takes 10-15 minutes.
Recommended tools
- Phillips PH00 and PH0 screwdrivers.
- Plastic pry tool / spudger.
- Anti-static mat (recommended).
- Tray to keep screws sorted by section.
If you'd rather have it done professionally, bring your laptop to Hafeez Center, Gulberg III, Lahore and we'll fit it same-day for a nominal labour charge.
Why buy this panel from N.N Laptops
Used Dell XPS 15 9570 panels are increasingly hard to find as the laptop generation ages out of warranty. We maintain dedicated donor stock specifically for parts harvesting — which means our panels come from laptops with known service history, not random scrap. Every listing is photographed under the same lighting so what you see is exactly what you receive. Plus, every panel is bench-tested for fit and structural integrity before it hits the shelf.
Where to buy and warranty
Stock is available right now at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore, or order remotely via WhatsApp 0314 4000131. Every panel ships with our 30-day check warranty — if the part has a hidden crack or doesn't fit, bring it back for replacement or refund. Lahore delivery is same-day; nationwide via TCS or Leopards. While here, you can also browse A/B/C/D panel replacements, see related laptop panels, browse touchpads, hinges, and flex cables.
Frequently Asked Questions
What grade is this Dell 15 9570 bottom case (D panel)? — We grade panels A (no visible marks), B (light surface scratches only — no cracks or dents), or C (heavier wear, but structurally perfect). The default listing is Grade A or B. If you need exactly Grade A, WhatsApp 0314 4000131 before ordering and we'll set one aside.
Does this come with the LCD / keyboard / hinges? — This listing is the bottom case (D panel) only. No LCD glass, no keyboard, no internal boards. If you need a complete assembly (with screen and hinges) instead of just the panel, message us — we may have a complete top assembly in stock at a different price.
Will it fit if my service tag is different? — Dell reuses the same bottom case (D panel) mould across multiple sub-models. For XPS 15 9570 this part is identical across all i3/i5/i7 and touch/non-touch variants of the same year. Always send us a photo of your existing panel via WhatsApp 0314 4000131 for a free fitment check.
How is the panel packed for shipping? — Each panel is wrapped in foam, double-boxed, and labelled fragile. We ship via TCS Plus or Leopards Premier across Pakistan. Damage in transit is replaced free — we cover return courier.
Can you install it for me? — Yes — bring the laptop to Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore and we'll fit the panel in-shop. Most installations finish the same day. Labour is charged separately but discounted when you buy the part from us.
