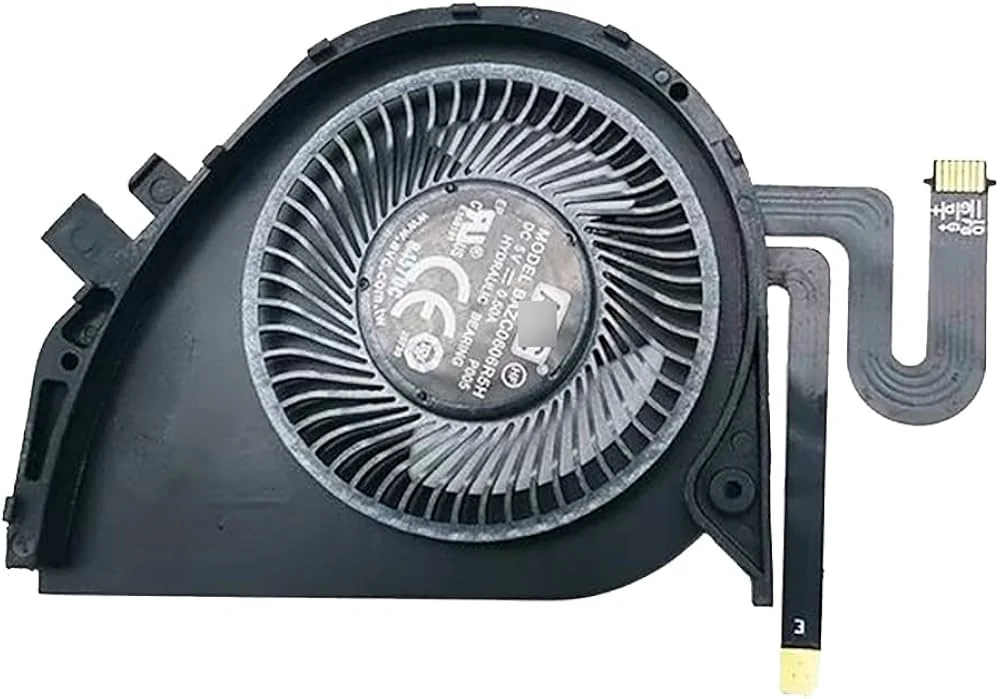

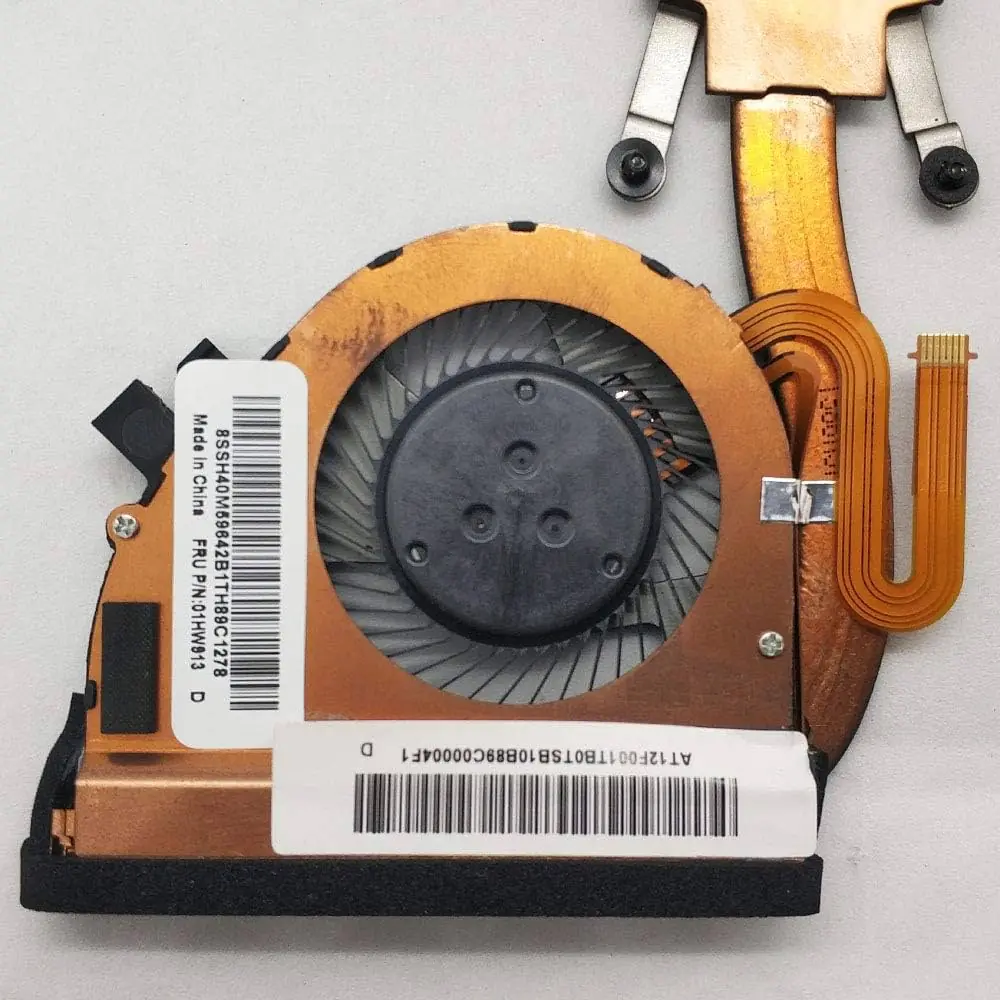

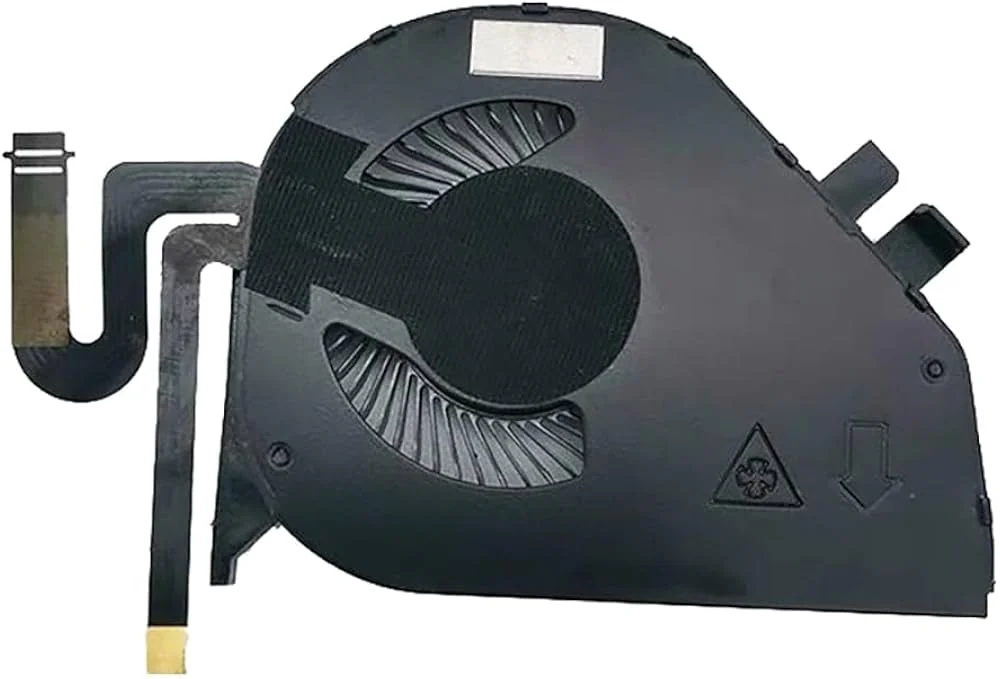

Lenovo ThinkPad X270/X280 Fan — Business-Grade Cooling for Two of ThinkPad's Most Compact Ultrabooks
The Lenovo ThinkPad X270/X280 Fan is the correct replacement cooling fan for two of Lenovo's most popular compact business ultrabooks — the ThinkPad X270 and ThinkPad X280. Both models pack Intel Core i5/i7 processors into a 12.5-inch chassis designed for professionals who carry their laptop daily. That compact design leaves limited space for the cooling system, meaning the single fan works at high RPM during any sustained load. Over time, the ball bearing degrades from constant cycling, the blades accumulate dust on their inner surfaces, and the fan loses its ability to maintain safe temperatures. The result: CPU throttling during meetings, presentations, or document-intensive work.
At N.N Laptops, Hafeez Center, Gulberg III, Lahore, we stock ThinkPad-grade parts for exactly this type of repair. The ThinkPad X270/X280 Fan is bench-tested before dispatch — spin-up, RPM ramp response, and connector signal are all verified. Business users in Lahore, Karachi, Islamabad, Rawalpindi, and Peshawar count on us for reliable parts with no surprises.
ThinkPad X270 vs X280 — Important Differences
- ThinkPad X270 — Intel 7th Gen Core i5/i7 (Kaby Lake), dual-battery option, slightly thicker chassis with more accessible internals
- ThinkPad X280 — Intel 8th Gen Core i5/i7 (Whiskey Lake), USB-C charging only, thinner revised chassis
- Both models use a similar fan housing and 4-pin connector, making this set a cross-compatible replacement — but always confirm your exact model before ordering
- Fan RPM range and connector pinout match original Lenovo specifications for both models
- Aluminum-frame centrifugal blower — generates directed airflow through the compact heatsink stack characteristic of ThinkPad X-series design
Compatibility Confirmation
This fan fits the Lenovo ThinkPad X270 (20HN, 20K6) and ThinkPad X280 (20KE, 20KF). The model number and MTM (Machine Type Model) are printed on the label underneath the laptop. If you have any doubt, WhatsApp Sayam at 0314 4000131 with the label photo and we will confirm the part number before you order. ThinkPad owners across Lahore, Karachi, Islamabad, Rawalpindi, and Faisalabad use this service to avoid ordering the wrong part.
Box Contents & Installation
You receive 1 x Lenovo ThinkPad X270/X280 Replacement Cooling Fan. The X270 and X280 bottom panels are held by 8 captive Phillips screws (they stay attached to the panel after loosening — do not try to remove them). The fan sits behind the left hinge area, secured by 2 screws and a 4-pin connector on the system board. The heatsink runs from the fan to the CPU die — if you separate the heatsink to access the fan mounting screws, reapply fresh thermal compound to the CPU contact point. Total time: 20-30 minutes for someone familiar with ThinkPads.
Pricing, Delivery & Warranty
Lenovo ThinkPad X270/X280 Fan price in Pakistan 2026: Rs. 3,199. In stock at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore. Free same-day Lahore delivery on orders before 6 PM. Nationwide delivery via TCS or Leopards to Karachi, Islamabad, Rawalpindi, Multan, Sialkot, and Faisalabad in 2-3 working days. Each unit carries a 30-day replacement warranty against manufacturing defects. Browse at nnlaptops.com or WhatsApp 0314 4000131.
