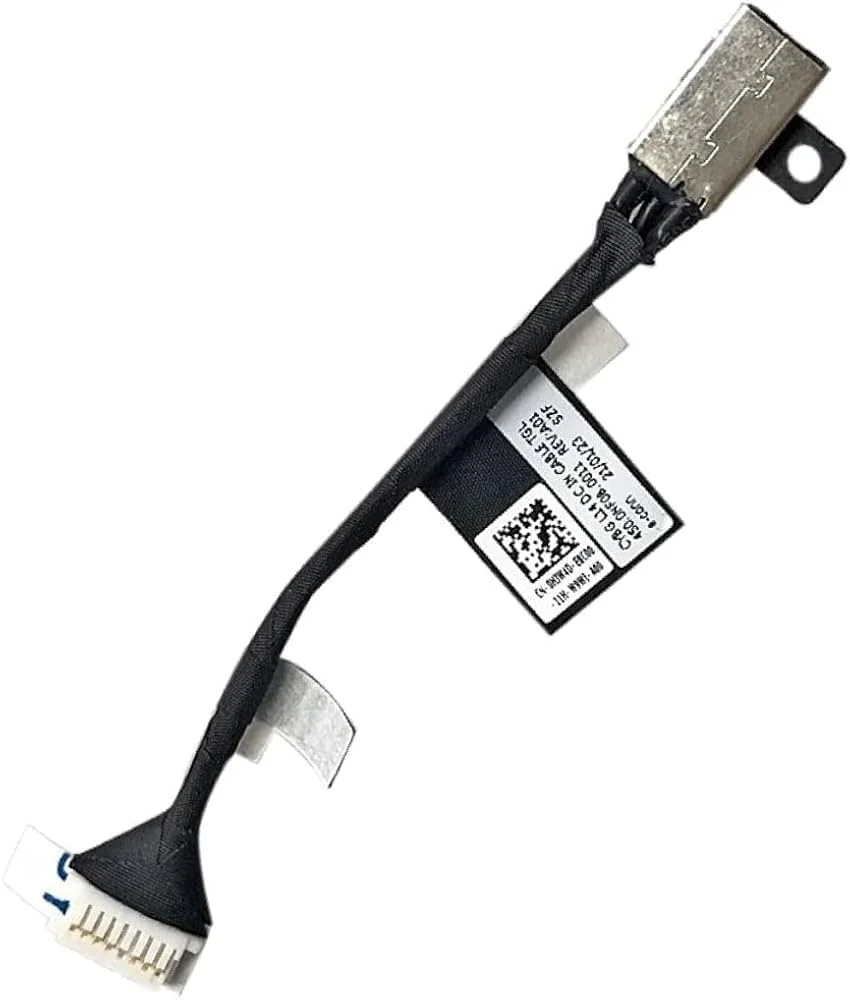

Dell Latitude DC Jack Power Connector 4.5×3.0mm with Cable Harness — quick answer
The Dell Latitude DC Jack Power Connector 4.5×3.0mm with Cable Harness is a replacement Dell DC power jack with pre-attached cable harness available at N.N Laptops, Hafeez Center, Lahore for Rs. 1,800. It's the OEM-spec 4.5mm × 3.0mm female barrel female jack for Latitude 5490, Latitude 5480, Latitude 7490. Plug-in installation (no soldering on the cable side), backed by our 15-day check warranty and nationwide Cash on Delivery.
Full specifications
| Brand | Dell |
|---|---|
| Connector Type | 4.5mm × 3.0mm female barrel |
| Cable Length | ~6-8cm pigtail with motherboard connector |
| Compatible Models | Latitude 5490, Latitude 5480, Latitude 7490, Latitude 5500, Latitude 7480 |
| Installation | Plug-in (no soldering on harness side) |
| Condition | Genuine — New service part |
| Warranty | 15-day check warranty |
Compatibility — which laptops does this DC jack fit?
This 4.5mm × 3.0mm female barrel female DC jack with pre-attached cable harness fits:
- Latitude 5490
- Latitude 5480
- Latitude 7490
- Latitude 5500
- Latitude 7480
Match the connector type on your existing charger before ordering. If your laptop charges via a 4.5mm × 3.0mm female barrel barrel, this part is the correct fit — no other variant of jack will physically mate with the OEM charger.
Common DC jack failure symptoms
If any of these match your laptop, the jack is the likely culprit:
- Charger LED is on, but laptop only charges if you wiggle the cable at a specific angle
- Battery indicator on screen flickers between 'charging' and 'not charging' randomly
- You feel the jack move when you push on the charger plug
- The plug feels loose; the connection isn't snug like it used to be
- Charging suddenly cuts out when you bump the laptop
If two or more of these match, the internal jack solder pads have likely cracked from years of plug-in / plug-out stress. Replacing the harness is a permanent fix.
Installation — step by step
Most modern laptops use a cable-harness jack like this one (rather than a board-soldered jack), so installation is screwdriver-only:
- Power off laptop, remove AC and battery
- Unscrew bottom panel (8-12 Phillips, sometimes Torx T5)
- Locate old DC jack pigtail connector on motherboard
- Unlatch ribbon / unplug 2-pin connector
- Remove old jack from chassis (1-2 screws, sometimes glued — gently pry)
- Seat new jack into the same recess, screw down
- Plug new harness into motherboard connector
- Reassemble, test with charger before fully closing
Total time: 20-30 minutes for someone comfortable with laptop teardown. We do free installation in shop if you bring the laptop to Hafeez Center.
Build quality & why we sell this specific part
OEM-grade plastic body with proper metal contacts for the centre-pin and outer-barrel return. The wire harness uses heavier 22 AWG copper than no-name aftermarket parts — important because a Latitude 5490 charger draws up to 4-6A and thinner copper would heat up under load. The motherboard-side connector is the correct keyed JST type, so it only fits one way and you can't reverse it.
Where to buy in Lahore
Visit us at Shop 66A, 3rd Floor, Hafeez Center, Gulberg III, Lahore. We stock dozens of jack variants — bring your laptop or the old jack and we'll match it instantly. Free Lahore delivery, nationwide via TCS / Leopards (Cash on Delivery). WhatsApp 0314 4000131 for stock confirmation.
Browse our full laptop parts, laptop chargers, and laptop batteries selection.
Warranty
Every DC jack carries our 15-day check warranty. If the jack fails on install, develops loose contact within 15 days, or causes intermittent charging, return it to the shop with the invoice for a full replacement. No questions asked within the warranty window.
Frequently asked questions
How do I know if my DC jack is actually the problem?
Symptoms: laptop only charges if the plug is held at an angle; charging stops when you wiggle the cable; battery indicator flickers between charging and discharging on screen. If your charger LED is on but the laptop says 'plugged in, not charging' randomly, the jack is the likely culprit.
Is the cable harness already attached?
Yes. The jack ships with a 6-8cm wire pigtail pre-soldered to the jack and terminated with the small 2-pin or 4-pin motherboard connector — just plug it into the board, no soldering required for the harness side.
Will the charger plug feel loose or work intermittently after I install this jack?
If the new jack is seated correctly on the motherboard and the solder joints are clean, the plug should feel firm — no wobble, no flicker. A loose-feeling charger after replacement usually means a cold solder joint on one of the four mounting pads.
Do I need a soldering iron to install this?
Only if you're replacing the older type that's directly soldered to the motherboard pads. Most modern Dell, HP and Lenovo machines now use a removable cable-harness jack like this one — pop the old harness out of its motherboard connector, plug the new one in. Five-minute job with a screwdriver.
